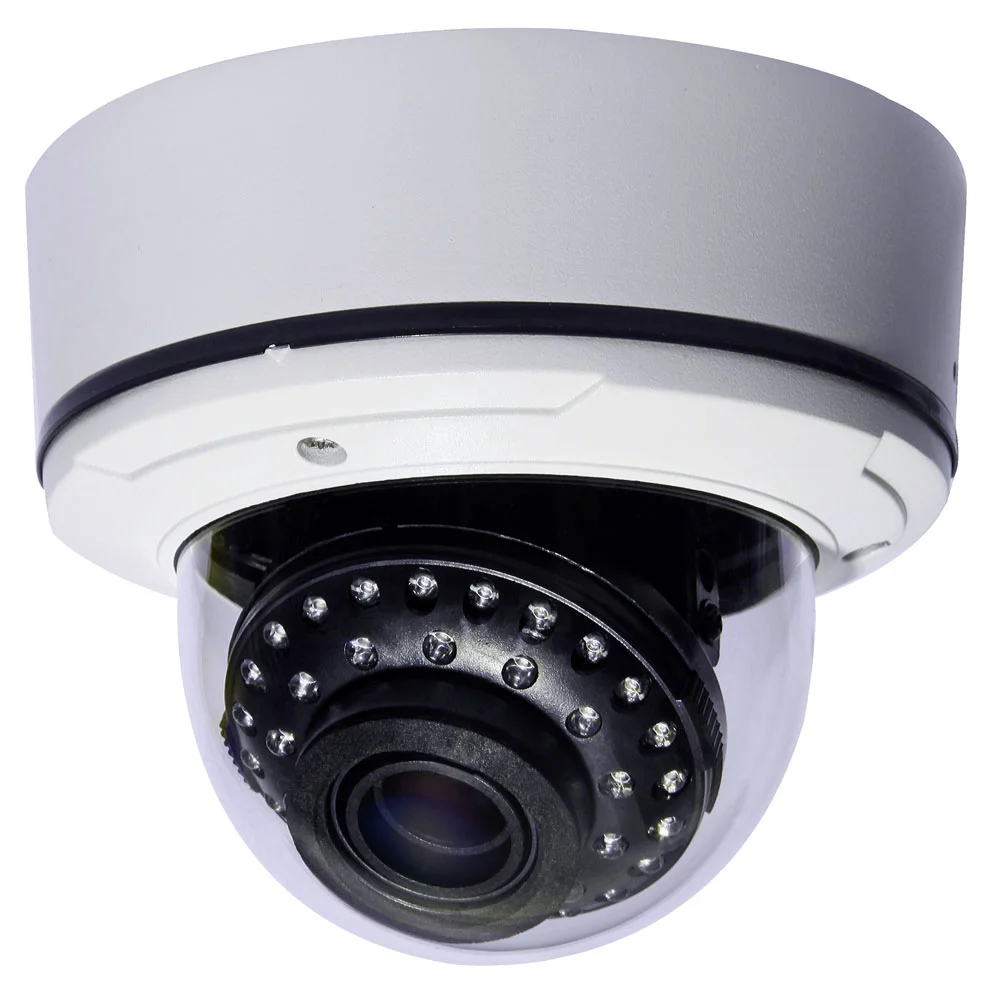

2.4MP w/OSD 2.8-12mm Vandal Dome IV-980W
2.4MP w/OSD 2.8-12mm Vandal Dome IV-980W
HD-CVI vandal proof water-resistant IR dome camera, 1/2.8” 2.4 Megapixel SONY CMOS, 30fps@1080P, 2.8-12mm lens, 35 IR LEDs, metal housing, IP66, DC 12V. 900ft long distance real-time video/OSD control over coax.
OSD - ON SCREEN DISPLAY
2 Year Warranty
Model
IV-980W
IP Rating
IP66
Image Sensor
1/2.8” 2.4 Megapixel SONY CMOS
Horizontal Resolution
NTSC: 1920(H)X1080(V)
Frame Rate
30fps@1080P
Minimum Illumination
0 Lux (with IRs ON)
Lens
2.8-12mm Vari-Focal Lens
S/N Ratio
MORE THAN 50dB
IR LEDs
850nm, 35 LEDs
IR Distance
100ft Depending on Scene Reflectance
Video Standard
NTSC
Electronic Shutter
Auto: 1/60 ~ 1/30,000s
OSD Control
On-Screen Display Menu (Languages, Privacy Area, Color, etc.)
Digital Noise Reduction
2D DNR
White Balance
Auto / Manual
Wide Dynamic Range
DWDR
Video Output
75 Ohm BNC for HD-CVI
Power Supply
DC 12V, Max 4W
Operating Temperature
-20C ~ 50C (-4C ~ 122C)
Dimensions, Weight
5.92” (D) x 4.84” (H), 3.1 lbs.
