Details

> 1/2.8" 2.4 Megapixel SONY CMOS
> 30fps @ 1080P
> Min Illumination of 0.05 Lux @ F1.2, 0 Lux (IR On)
> AGC, ATW, BLC, DWDR(via OSD Menu)
> Built-in IR LEDs (100ft IR Distance)
> 2.8-12mm Vari-Focal Lens
> IP66, Water-Resistant Housing, DC12V

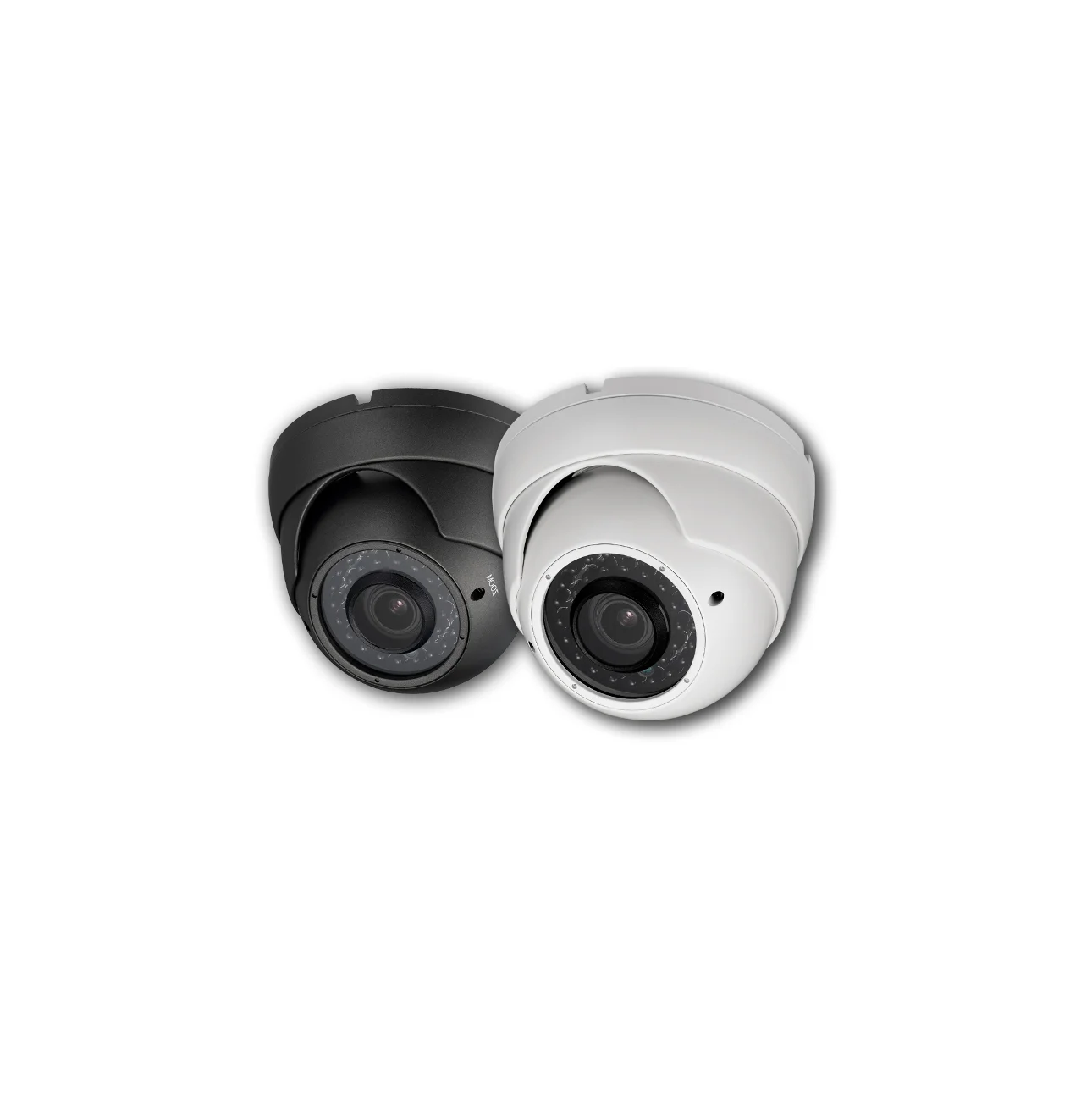

> Color Options: Charcoal Grey or White
> Separate BNC Outputs for Analog & HD-CVI

Model

DH-IDV-580B(W)

IP Rating

IP66

Image Sensor

1/2.8” 2.4 Megapixel SONY CMOS

Horizontal Resolution

NTSC: 1920(H)X1080(V)

Frame Rate

30fps@1080P

Minimum Illumination

0 Lux (with IRs ON)

Lens

2.8-12mm Vari-Focal Lens

S/N Ratio

MORE THAN 50dB

IR LEDs

850nm, 36 LEDs

IR Distance

100ft Depending on Scene Reflectance

Video Standard

NTSC

Electronic Shutter

Auto: 1/60 ~ 1/30,000s

OSD Control

On-Screen Display Menu (Languages, Privacy Area, Color, etc.)

Digital Noise Reduction

2D DNR

White Balance

Auto / Manual

Wide Dynamic Range

DWDR

Video Output

Separate 75 Ohm BNC Outputs for Analog & HD-CVI

Power Supply

DC 12V, Max 4W

Operating Temperature

-20C ~ 50C (-4C ~ 122C)

Dimensions, Weight

4.7” (D) x 3.48” (H), 1.9 lbs.
