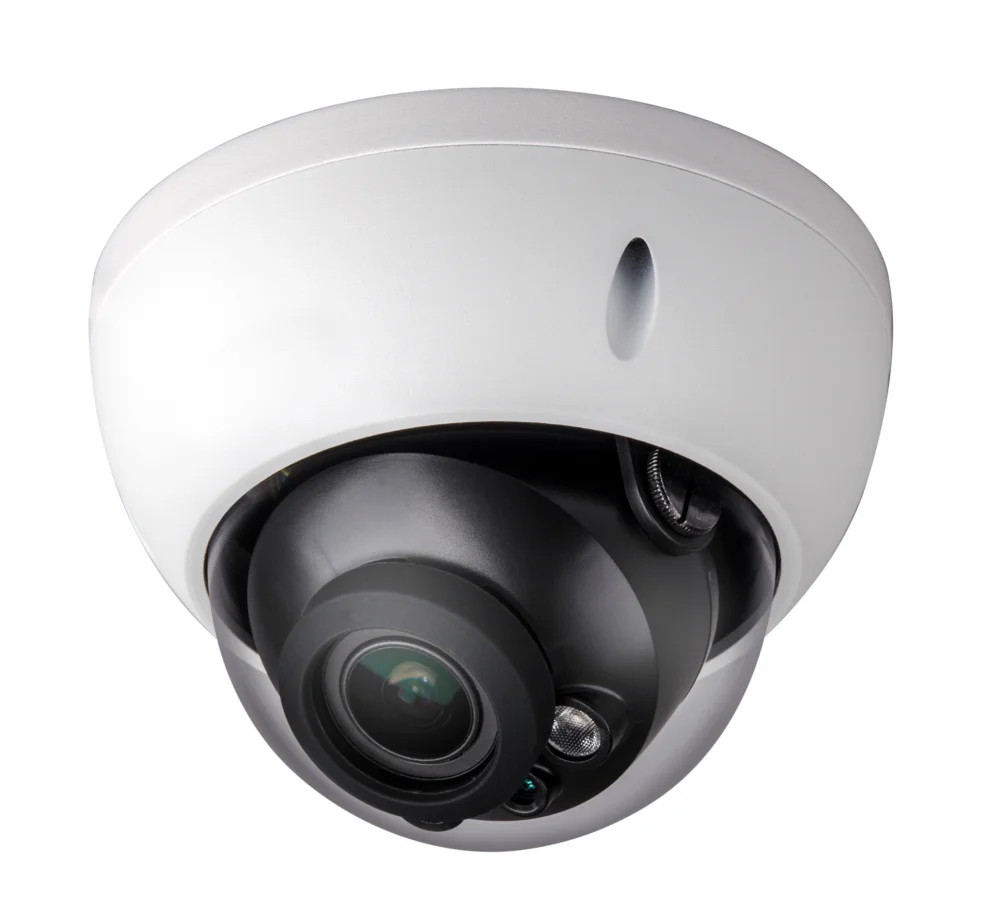

2.4MP w/OSD 2.7-12mm Motorized lens Vandal Dome HAC-HDBW220R-Z
2.4MP w/OSD 2.7-12mm Motorized lens Vandal Dome HAC-HDBW220R-Z
HD-CVI vari-focal vandel-proof IR dome camera, 1/2.9" 2 Megapixel CMOS, 30fps@1080P, 2.7-12mm motorized lens, 2 array IR LEDs, IP66, DC 12V. 1500ft long distance real-time transmission over coax.
Details
>1/2.8" 2.4Megapixel CMOS
>30fps@1080P, 60fps@720P
>High speed, long distance real-time transmission
>HD and standard definition switchable
>OSD Menu, control over coaxial cable
>DWDR, Day/Night(ICR), AWB, AGC, BLC, 3D-DNR
>2.7~12mm motorized lens
>Max. IR LEDs length 30m, Smart IR
>IP67, IK10, DC12V
Model HAC-HDBW2220RN-Z
Camera
Image Sensor1/2.8" 2.4Megapixel CMOS
Effective Pixels1984(H)×1225(V)
Electronic Shutter1/3s~1/100,000s
Video Frame Rate25/30/50/60fps@720P; 25/30fps@1080P
SynchronizationInternal
Min. Illumination0.05Lux@F1.2(AGC ON), 0Lux IR on
Video Output1-channel BNC HDCVI high definition video output/
CVBS standard definition video output (Can switch)
Camera Features
Max. IR LEDs Length30m, Smart IR
Day/NightAuto(ICR) / Color / B/W
Noise Reduction2D/3D
OSD MenuSupport
Lens
Focal Length2.7~12mm
Angle of ViewH: 105.5º~32.9º
Lens TypeMotorized / Fixed Iris
Mount TypeΦ14
General
Power SupplyDC12V±10%
Power ConsumptionMax 8.6W
Working Environment-30°C~+60°C / Less than 95%RH (no condensation)
Transmission DistanceOver 500m via 75-3 coaxial cable
Ingress ProtectionIP67 & IK10
DimensionsΦ122mm×89mm
Weight0.45kg
MaterialMetal
