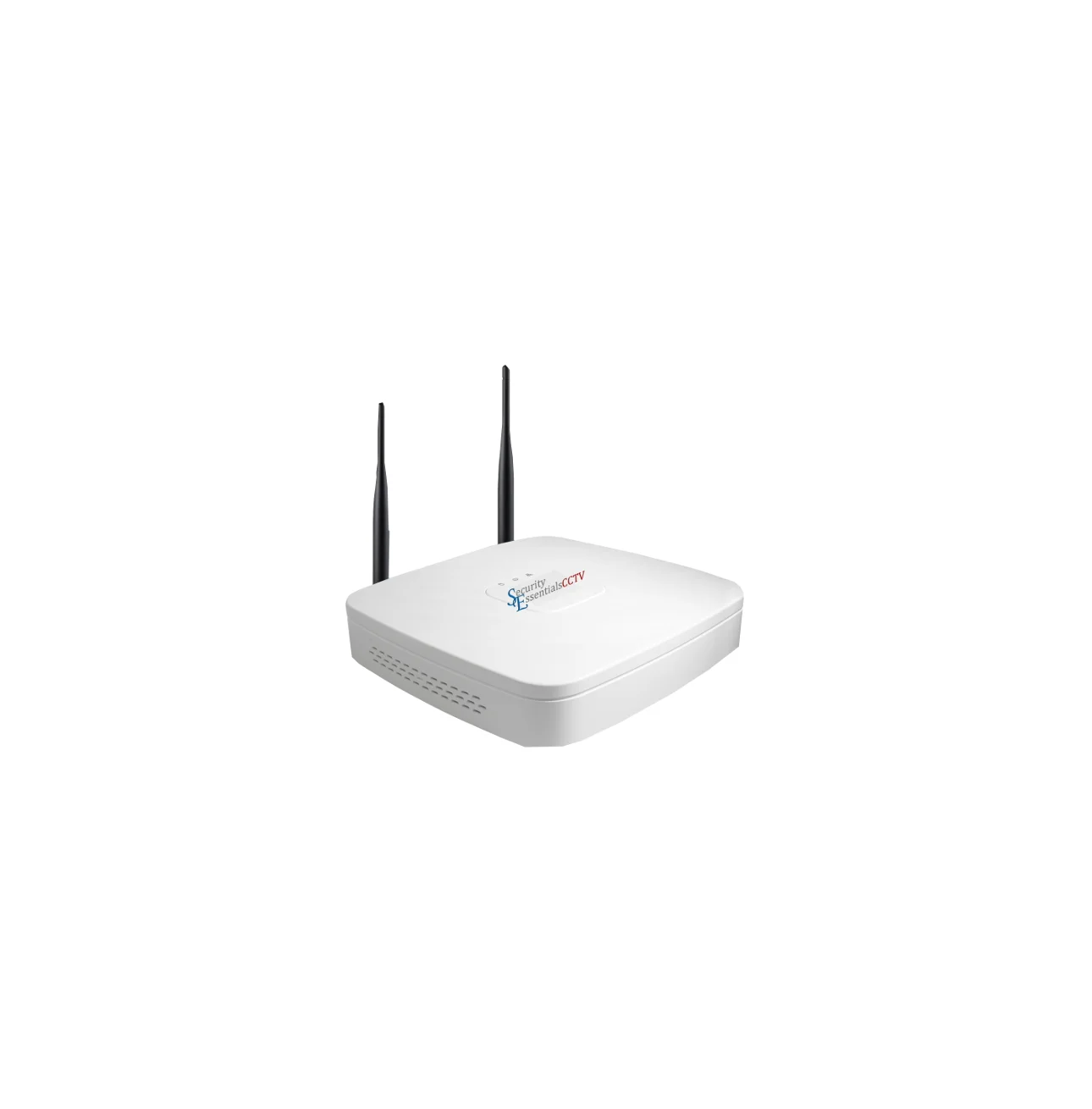

NVR4104-W
NVR4104-W
> Up to 4 channel IP camera inputs
> H.264/MJPEG dual codec decoding
> Max 80Mbps incoming bandwidth
> HDMI/VGA simultaneous video output
> All channel synchronous realtime playback, GRID interface
> Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
> ONVIF Version 2.4 conformance
> 3D intelligent positioning with our PTZ camera
> Support 1 SATA HDD up to 4TB, 2 USB2.0
> Support WPS one-key add
> Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) &Smart Phone(DMSS)
ModelDH-NVR4104-W
System
Main ProcessorDual-core embedded processor
Operating SystemEmbedded LINUX
Video& Audio
IP Camera Input4 channel
Two-way Talk1 channel Input, 1 channel Output, RCA
Display
Interface1 HDMI, 1 VGA
Resolution1920×1080, 1280×1024, 1280×720, 1024×768
Display Split1/4
OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
CompressionH.264/MJPEG
Resolution5Mp(2560×1920)/3Mp(2048×1536)/1080P(1920×1080)/720P(1280×720)/D1 (704×576/704×480)
Record Rate80Mbps
Bit Rate48~ 8192kbps
Record ModeManual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection
Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video DetectionMotion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Playback & Backup
Sync Playback1/4
Search ModeTime/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup ModeUSB Device/Network/Internal SATA burner
Network
Ethernet1 RJ-45 port (10/100Mbps)
Wireless NetworkBuilt-in Wifi module, 2 WiFi Antenna
Network FunctionHTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
Storage
Internal HDD1 SATA port, up to 4TB
Auxiliary Interface
USB2 ports (2 Rear),USB2.0
General
Power SupplyDC12V/2A
Power Consumption10W(without HDD)
Working Environment-10°C~+55°C / 10%~90%RH / 86~106kpa
Dimension
(W×D×H)Smart 1U, 205mm×205mm×45mm
Weight0.5KG(without HDD)
