1080p 2.4MP w/OSD 3.6mm fixed IBF-680
1080p 2.4MP w/OSD 3.6mm fixed IBF-680

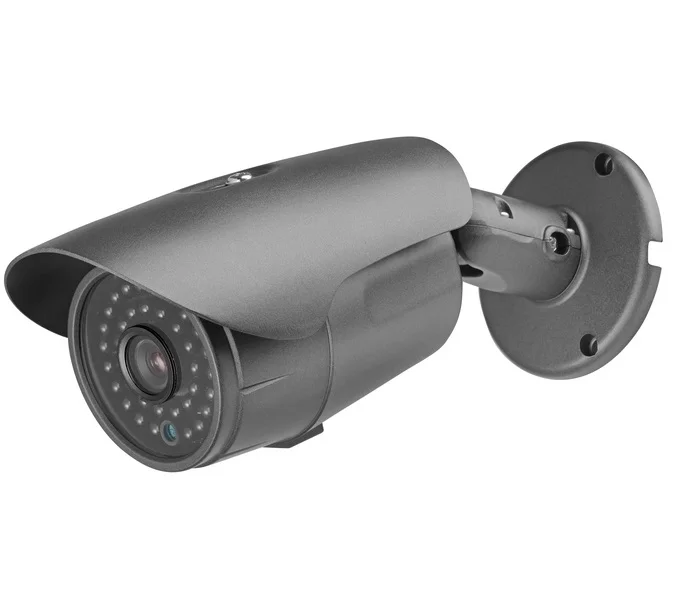

HD-CVI fixed lens water-resistant IR bullet camera, 1/2.8” 2.4 Megapixel SONY CMOS, 30fps@1080P, 3.6mm lens, 36 IR LEDs, metal housing, IP66, DC 12V. 900ft long distance real-time video/OSD control over coax. Separate BNC ports for analog and HDCVI output.
OSD - ON SCREEN DISPLAY
2 Year Warranty
Model
IBF-680B(W)(ZA)
IP Rating
IP66
Image Sensor
1/2.7” 2 Megapixel CMOS
Horizontal Resolution
NTSC: 1920(H)X1080(V)
Frame Rate
30fps@1080P
Minimum Illumination
0 Lux (with IRs ON)
Lens
3.6mm Fixed Lens
S/N Ratio
MORE THAN 50dB
IR LEDs
850nm, 36 LEDs
IR Distance
100ft Depending on Scene Reflectance
Video Standard
NTSC
Electronic Shutter
Auto: 1/60 ~ 1/30,000s
Digital Noise Reduction
2D DNR
White Balance
Auto
Video Output
75 Ohm BNC for HD-CVI
Power Supply
DC 12V, Max 4W
Operating Temperature
-20C ~ 50C (-4F ~ 122F)
Dimensions, Weight
2.76” (H) x 7.13” (L), 1.1 lbs.
